Bending Tools / Amada Style Tools
Request for Quote

Die

Compatible with Press Brakes : ACL, Accupress, AM- Machinery, Atlantic, Adira, Baykal, BL, Boschert Boutillon, Bystronic - Beyler Euro-B, Colgar, Dener, Deratech, Durmazlar, Ermaksan, Farina, Gade, Gasparini, Haco, Hindustan, JMT, LFK, Metafab, MVD, Prima Power, Rico, Salvaginini. They are perfectly compatible with Amada Design.

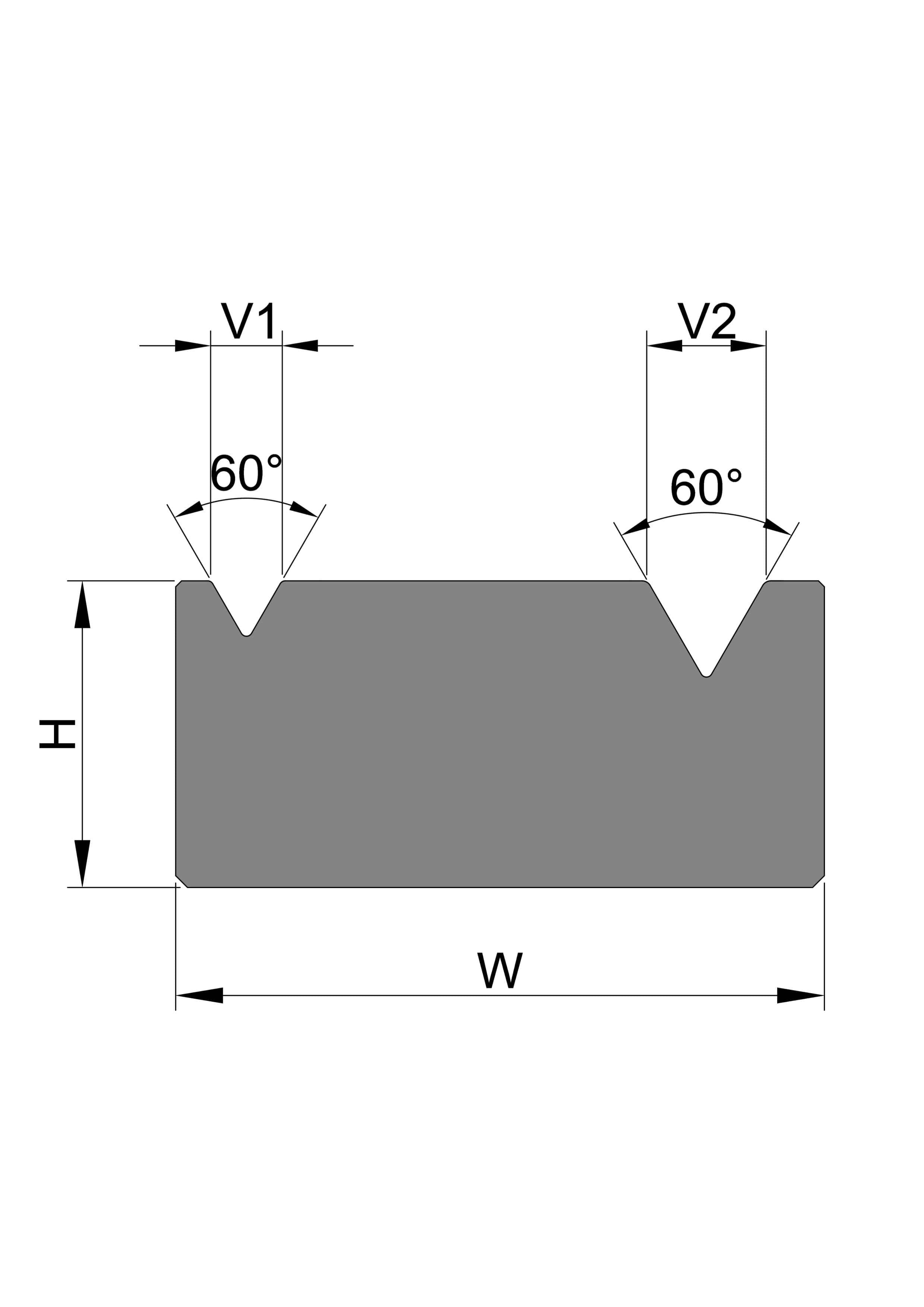

1113 / 60˚ / V

2 'V' Die - 60˚

2 'V' Die - 60˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

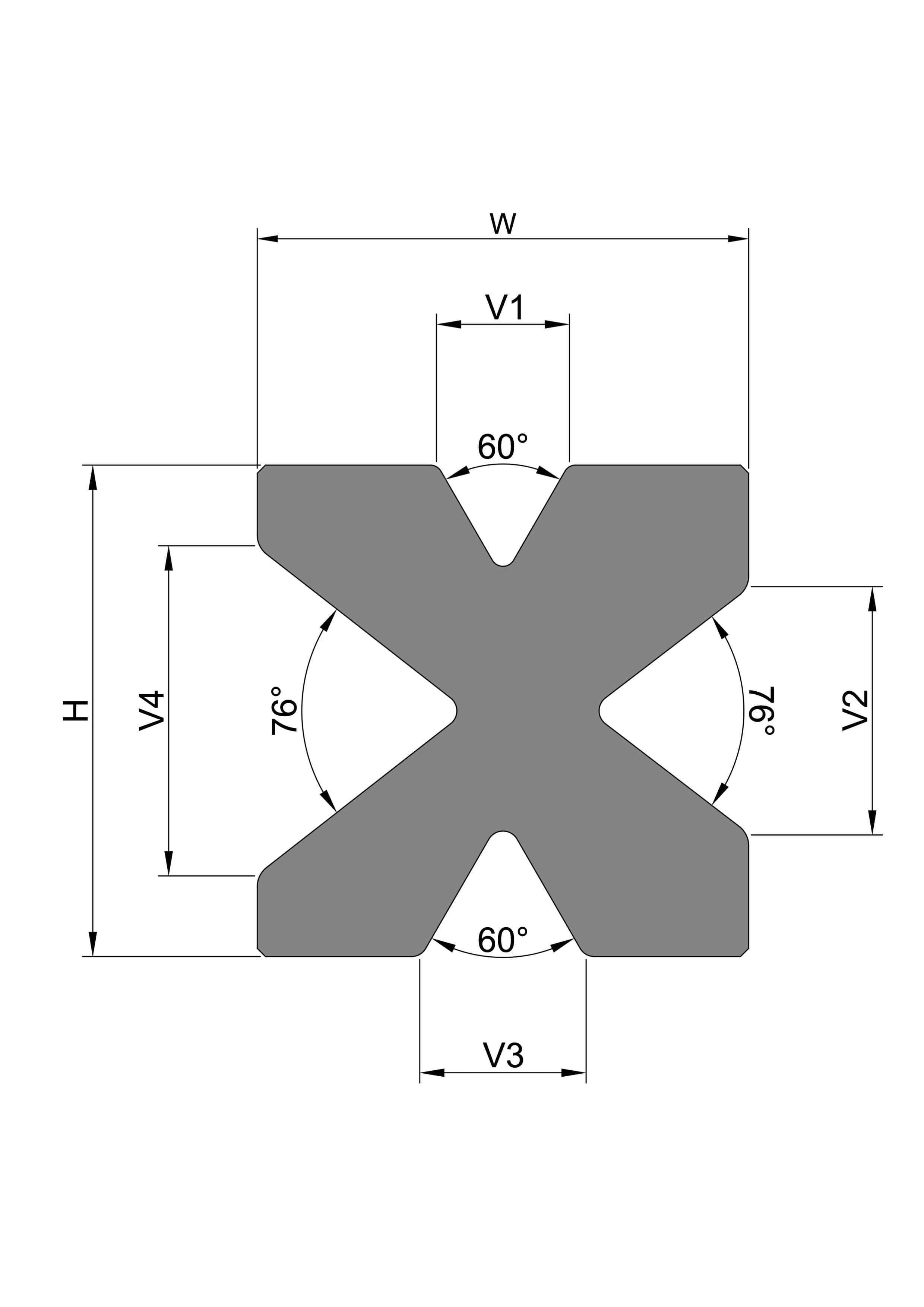

1114 / 60˚ / 76˚ / V

Multi 'V' Die - 60˚/ 76˚

Multi 'V' Die - 60˚/ 76˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

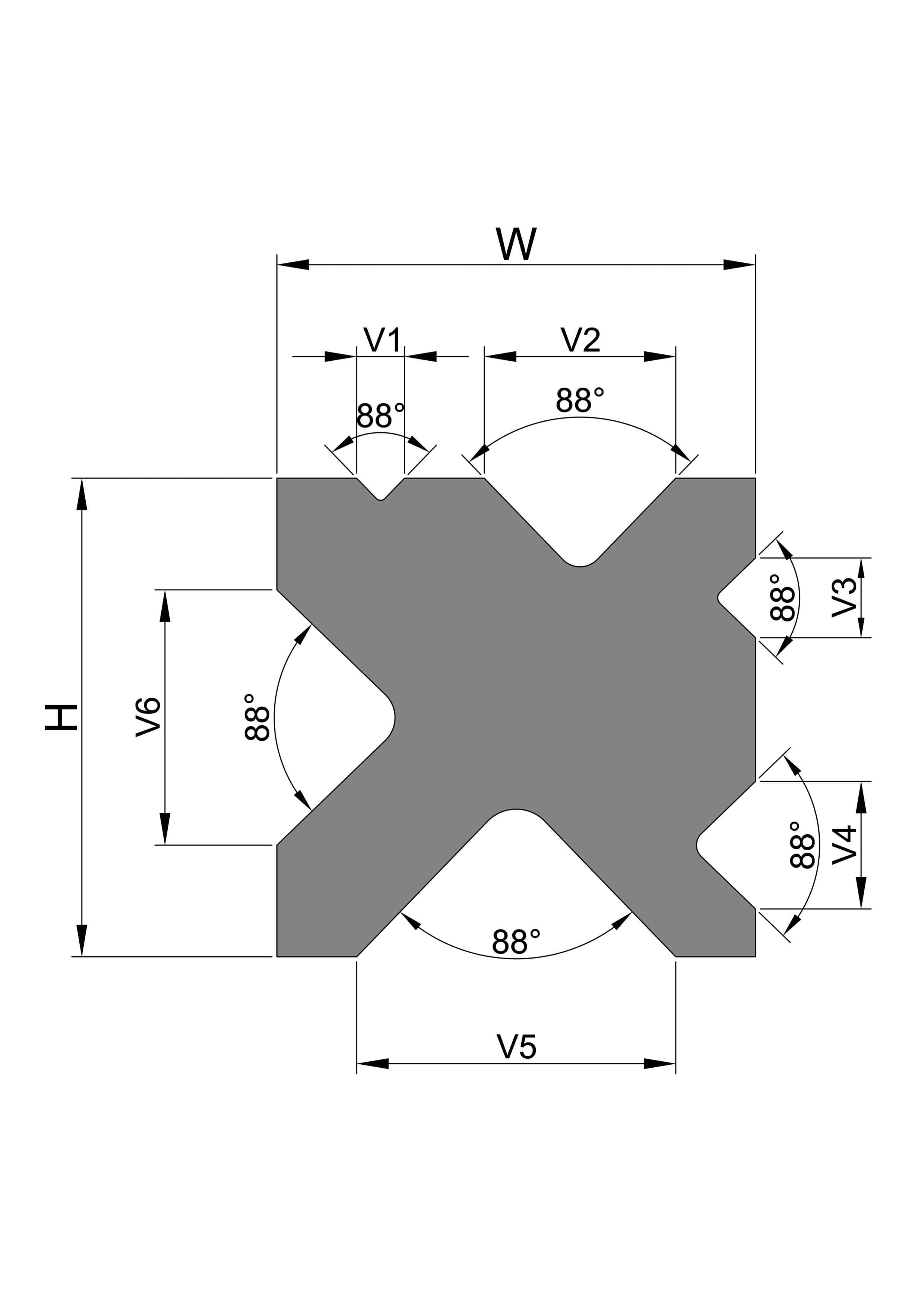

1115 / 88˚ / V

Multi 'V' Die - 88˚

Multi 'V' Die - 88˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

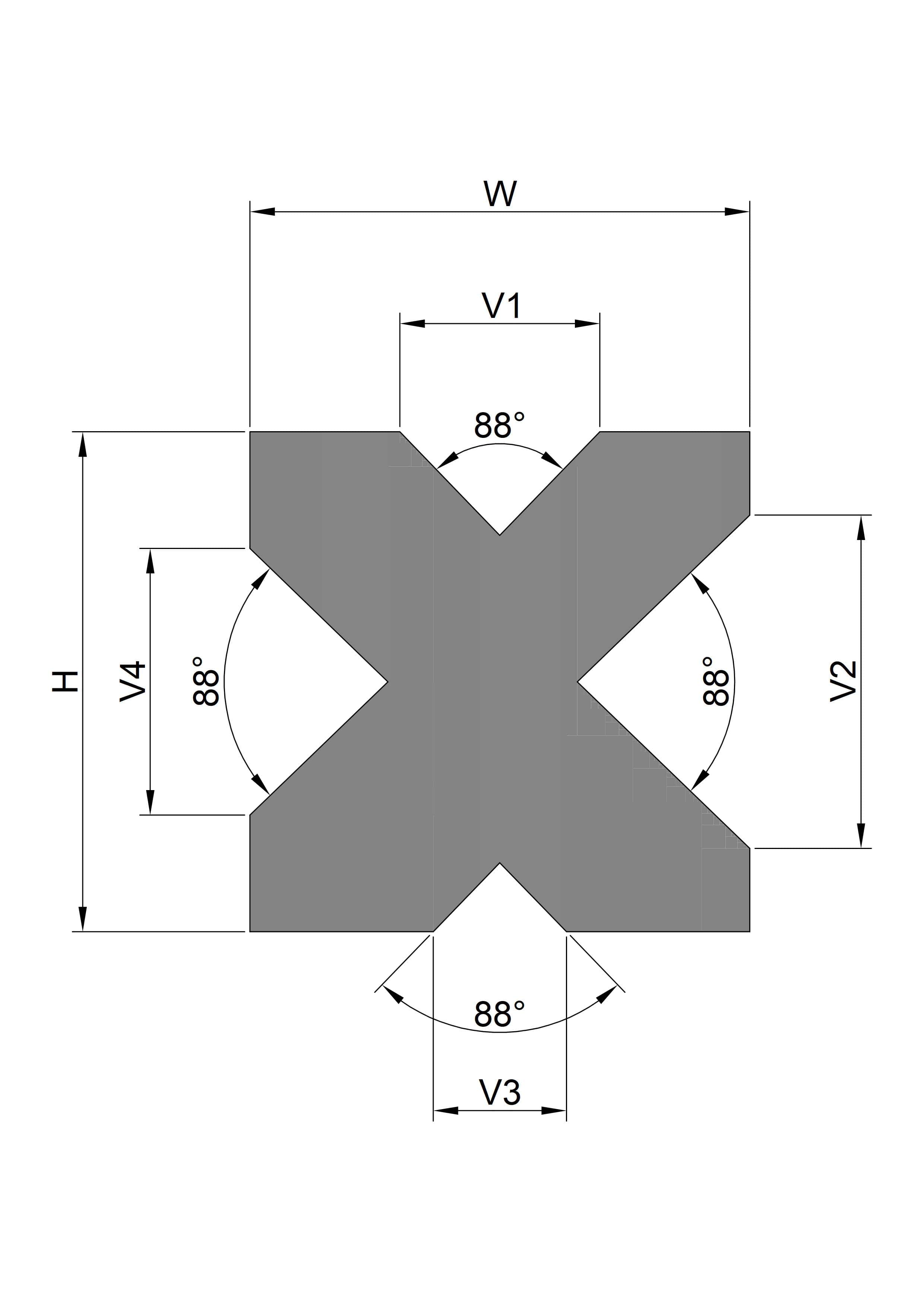

1116 / 88˚ / V

Multi 'V' Die - 88˚

Multi 'V' Die - 88˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

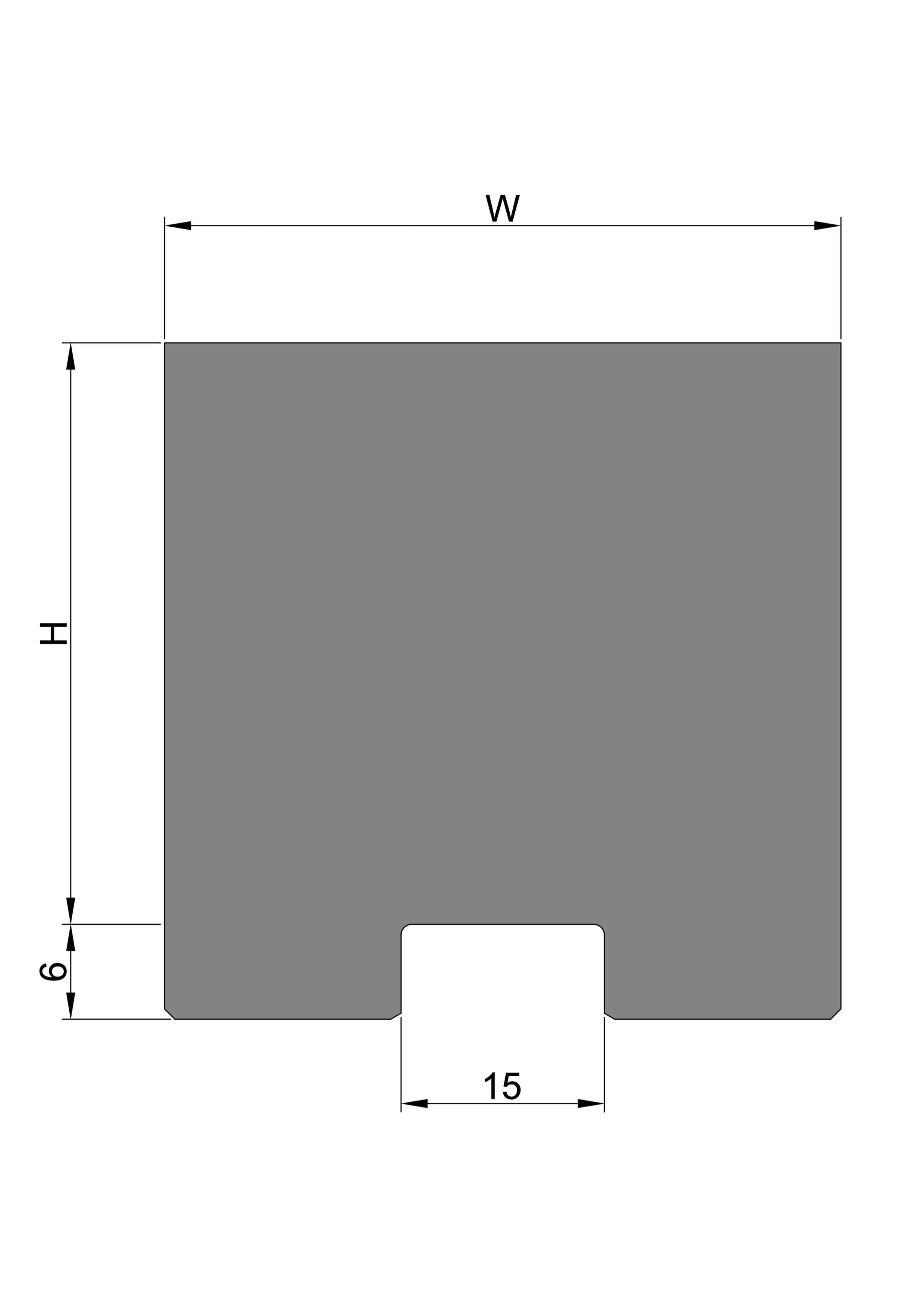

1117 / F

Flattening Die

Flattening Die

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC

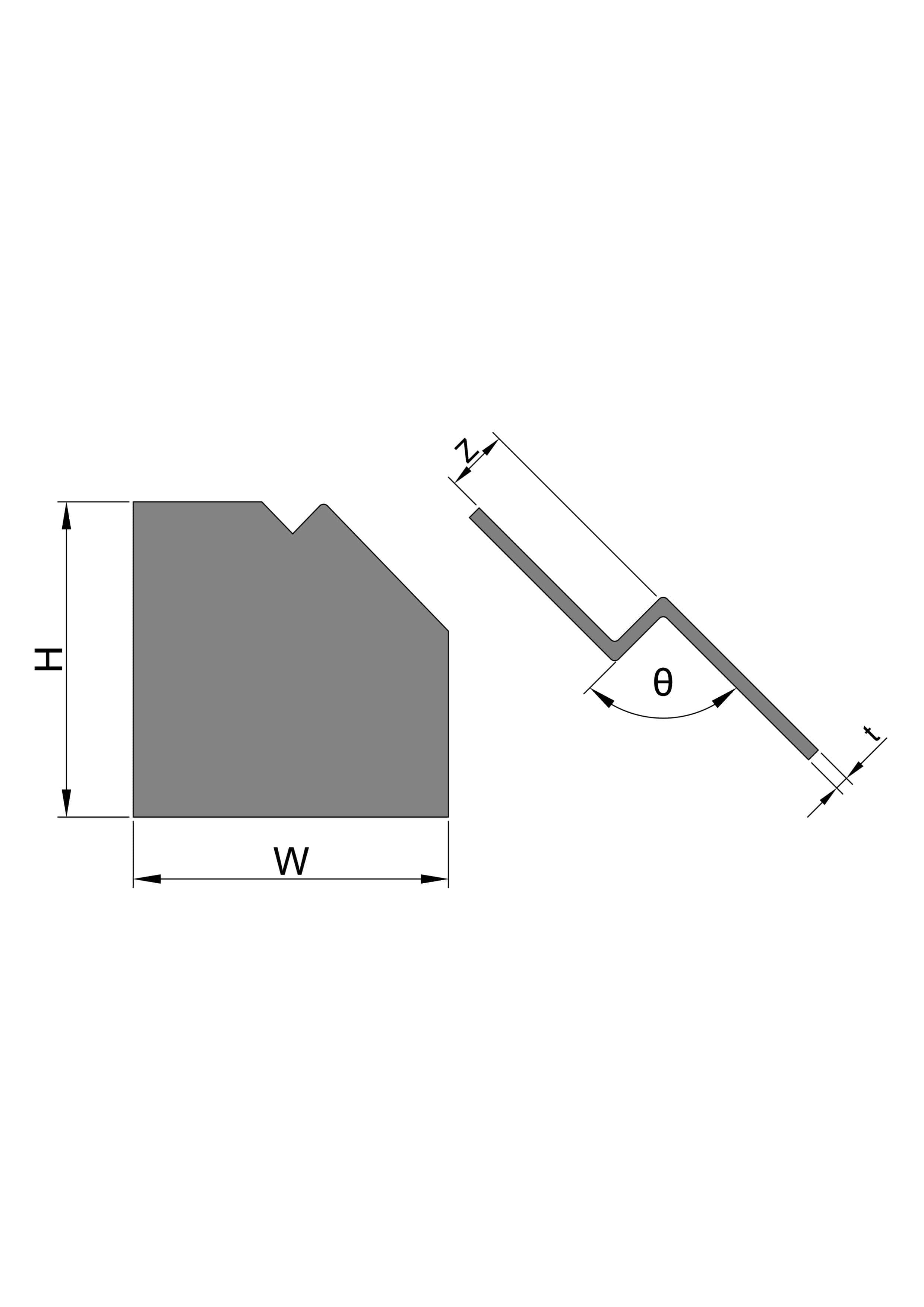

1118 / 88˚ / V

'Z' Profile Die - 88˚

'Z' Profile Die - 88˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 85˚ to 90˚

Sections for 835 mm

Sections for 835 mm
×
1 2
