Trumpf - Wila Style Bending Punch - Madhuram Micron Tools

Bending Tools / Trumpf-Wila Style Tools

Request for Quote

Compatible with Press Brakes : Darley, Safan, NSCL.

Punch Die Punch and Die Set Hemming Tools Punch Holder Die Holder Radius Punch Insert Special Tools

Amada Style Trumpf - Wila Style LVD Style Bystronic Beyeler Style American Style

Amada Style Trumpf Style Murata Style Multitools Special Tools

Filter

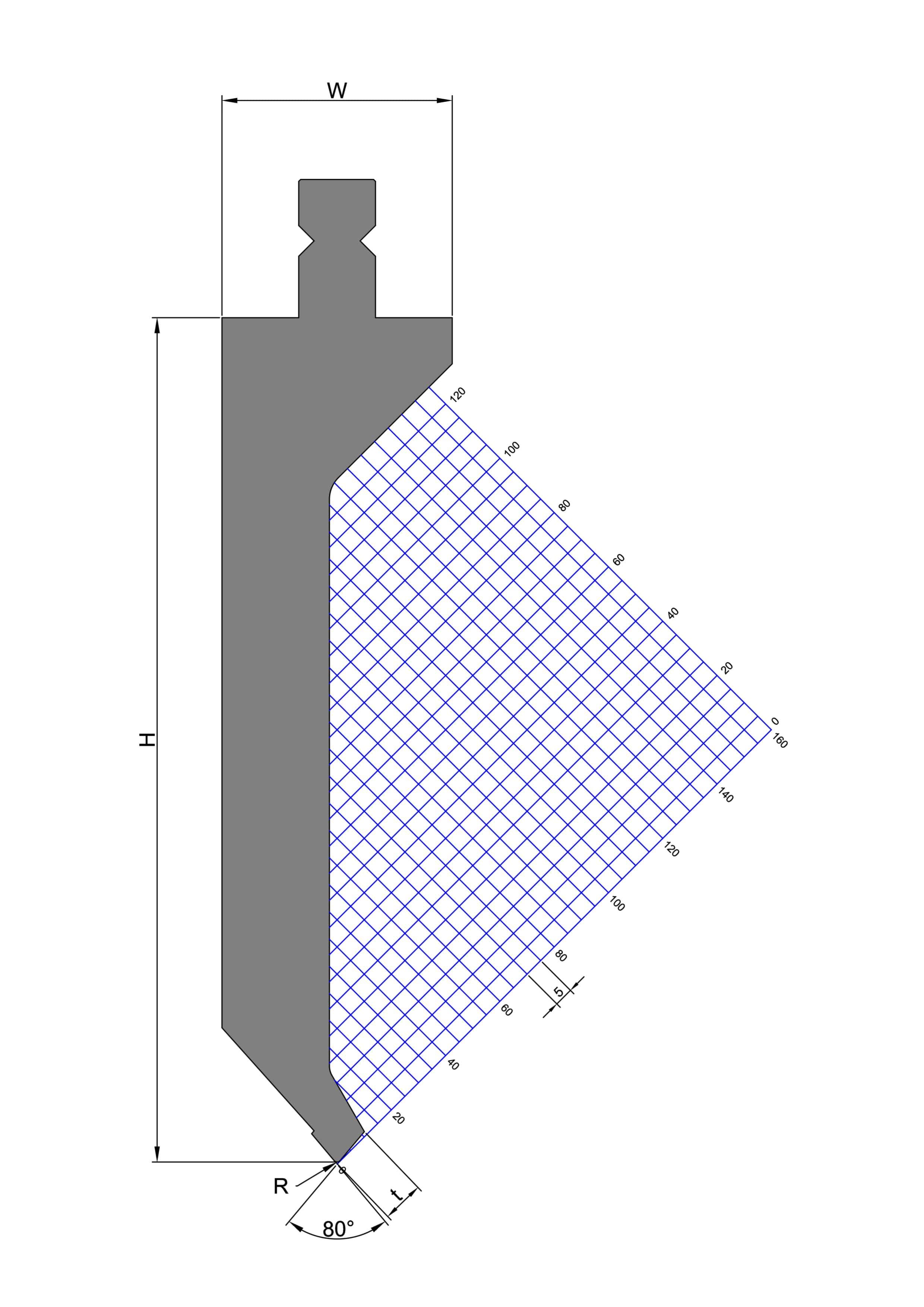

Gooseneck Punch - 80˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 60˚ to 86˚

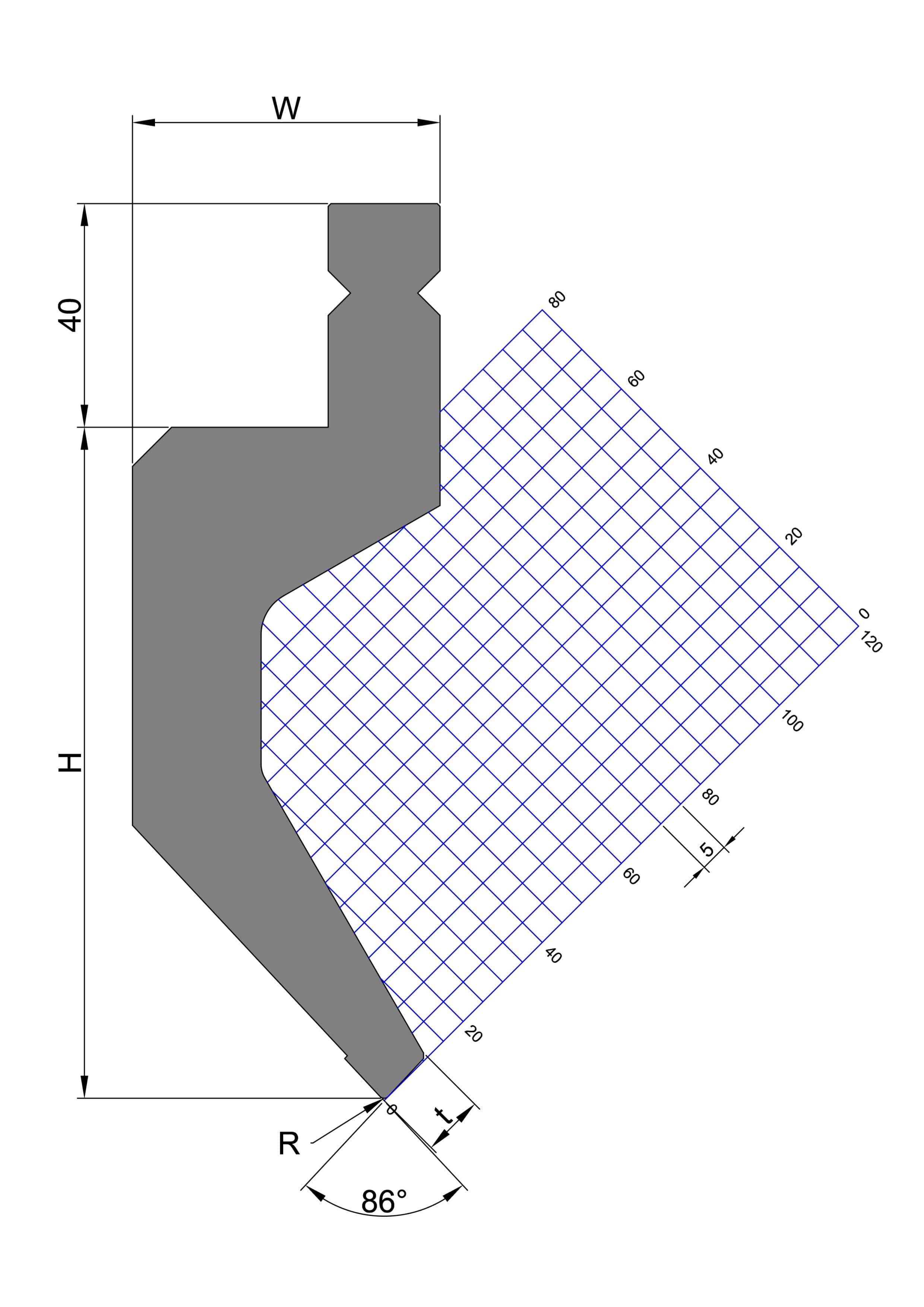

Gooseneck Punch - 86˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 60˚ to 86˚

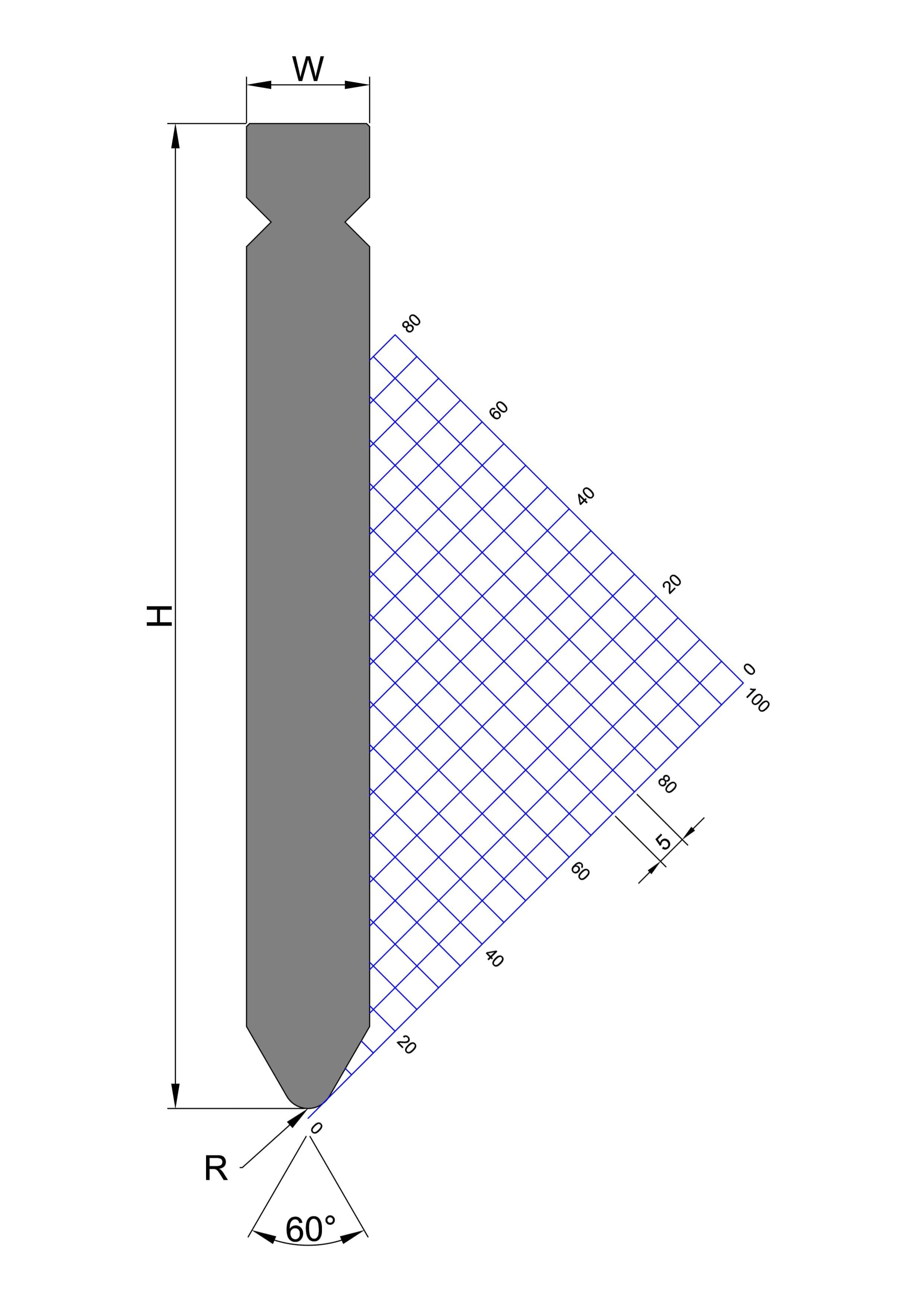

Block Punch - 60˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available at 60˚

Acute Punch - 26˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 60˚

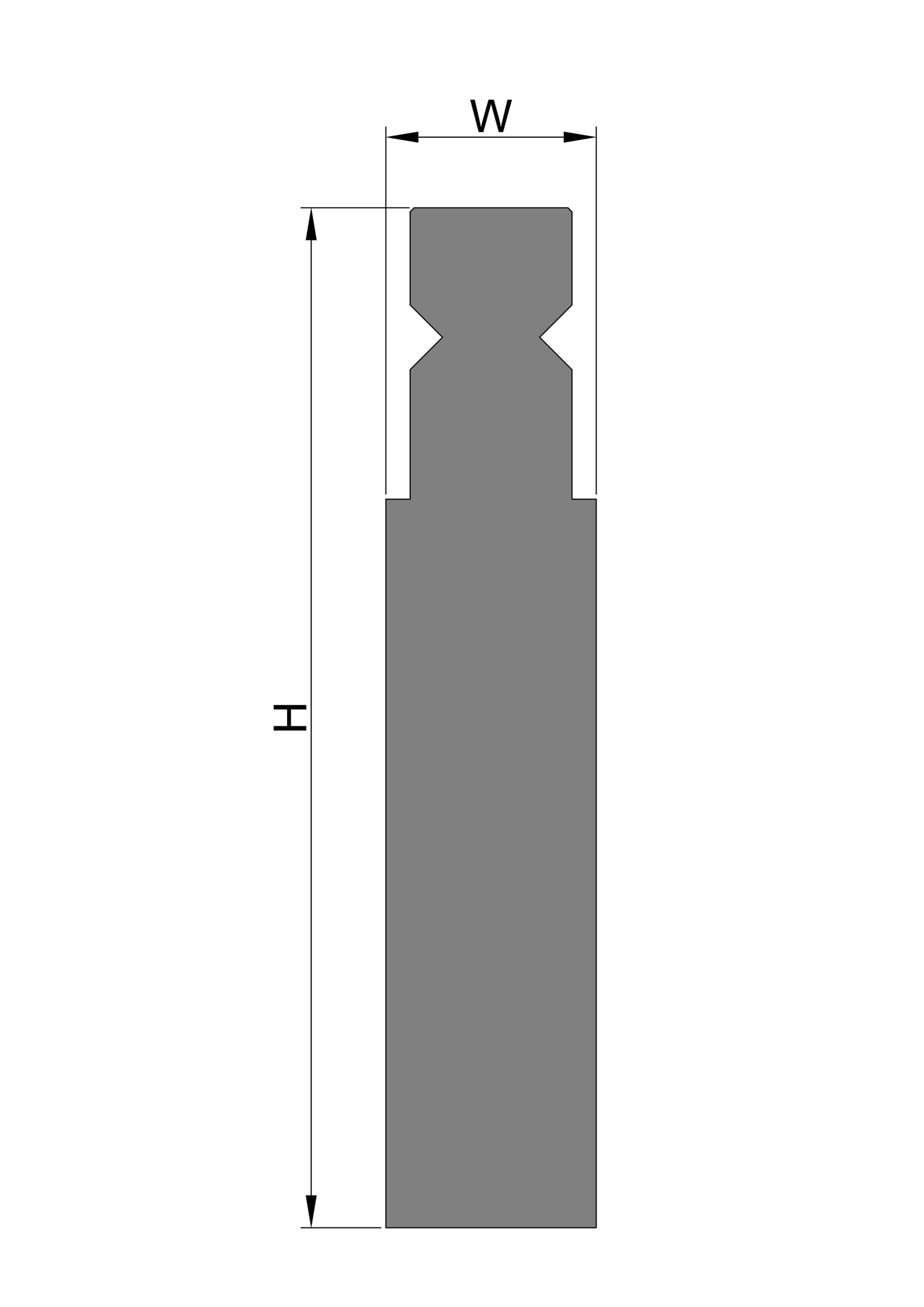

Flattening Punch

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
